Embossers

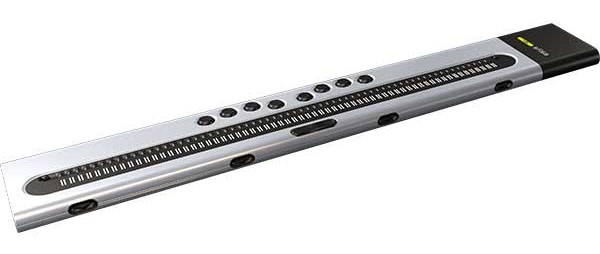

EB Display Terminal esys 64
- 64 braille cells / 64 routing cursor keys / 4 scrolling wheels / 2 joysticks
- 8 dots per cell
- 10 key braille keyboard
- Battery life around 17 hours
- Lithium-Ion Battery / USB power supply
- USB and Bluetooth connections
- Micro-SD card slot (2Go card provided)
- Documentation and drivers provided with CD
- Dimensions : 555 (64 cel.) / 658 (80 cel.) x 94 x 22 mm
- Weight : 1 200 gr. (64 cel.) / 1 400 gr. (80 cel.)
Compatibility features
- Systems : Windows, Apple OSX et iOS, Android, Linux
- Screen readers : Jaws, VoiceOver, Talk Back, Supernova, Window-Eyes, NVDA… etc
- File formats : .brl, .brf, .rtf, .txt, .dbt and access to the french library BNFA...
Note that esys 64 is also available as a display with no Perkins keyboard esys 64 light

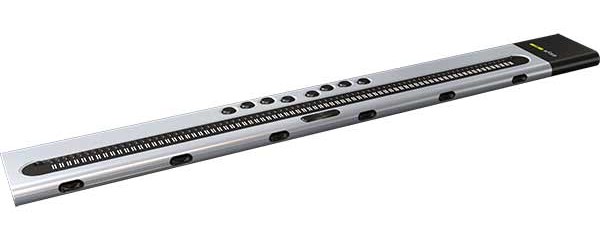

EB Display Terminal esys 80
Braille Display esys 80
- 80 braille cells / 80 routing cursor keys / 4 scrolling wheels / 2 joysticks
- 8 dots per cell
- 10 key braille keyboard
- Battery life around 17 hours
- Lithium-Ion Battery / USB power supply
- USB and Bluetooth connections
- Micro-SD card slot (2Go card provided)
- Documentation and drivers provided with CD
- Dimensions : 555 (64 cel.) / 658 (80 cel.) x 94 x 22 mm
- Weight : 1 200 gr. (64 cel.) / 1 400 gr. (80 cel.)
Compatibility features
- Systems : Windows, Apple OSX et iOS, Android, Linux
- Screen readers : Jaws, VoiceOver, Talk Back, Supernova, Window-Eyes, NVDA… etc
- File formats : .brl, .brf, .rtf, .txt, .dbt and access to the french library BNFA...
Note that esys 80 is also available as a display with no Perkins keyboard esys 80 light

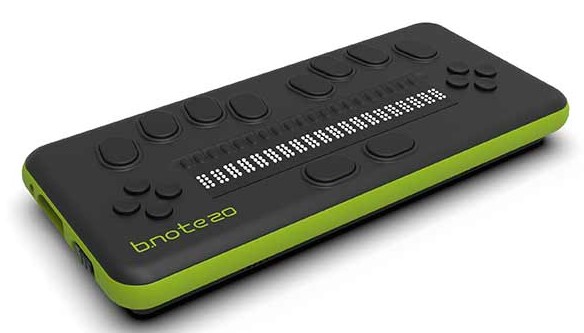

EB Braille Note b.note 20
Braille Note b.note 20
- 20 braille cells / 8 dots per cell
- 20 routing cursors
- 10 keys braille keyboard
- 2 keypads of 4 buttons
- Processors : STM32L1 / ARM Cortex-A53, quad core, 1.4GHz
- RAM: 512MB LPDDR2 (900MHz)
- SD Card 64GB
- Wifi : 2.4GHz 802.11ac dual band
- Bluetooth : 4.2 LS BLE
- Audio out : Jack 3,5mm
- Battery : 3.7V 6000mAh (22.2 W)
- Fast charge with external power supply adaptor USB C (protocol PD Universel 2.0)
- Charge at 30% in 25 min., 80% in 1h30
- Battery life: around 14 hours
- Dimensions : 235 (20 cel.) / 365 (40 cel.) x 105 x 27 mm
- Weight : 500 gr. (20 cel.) / 600 gr. (40 cel.)
- A dust cover is included
- Compatibility with the various screen readers on the market Jaws, NVDA, super nova, Voiceover, talk-back / braille-back, brltty, orca, etc

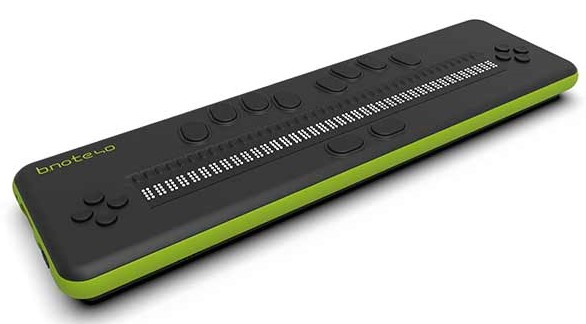

EB Braille Note b.note 40
- 40 braille cells / 8 dots per cell
- 40 routing cursors
- 10 keys braille keyboard
- 2 keypads of 4 buttons
- Processors : STM32L1 / ARM Cortex-A53, quad core, 1.4GHz
- RAM: 512MB LPDDR2 (900MHz)
- SD Card 64GB
- Wifi : 2.4GHz 802.11ac dual band
- Bluetooth : 4.2 LS BLE
- Audio out : Jack 3,5mm
- Battery : 3.7V 6000mAh (22.2 W)
- Fast charge with external power supply adaptor USB C (protocol PD Universel 2.0)
- Charge at 30% in 25 min., 80% in 1h30
- Battery life: around 14 hours
- Dimensions : 235 (20 cel.) / 365 (40 cel.) x 105 x 27 mm
- Weight : 500 gr. (20 cel.) / 600 gr. (40 cel.)
- A dust cover is included
- Compatibility with the various screen readers on the market Jaws, NVDA, super nova, Voiceover, talk-back / braille-back, brltty, orca, etc

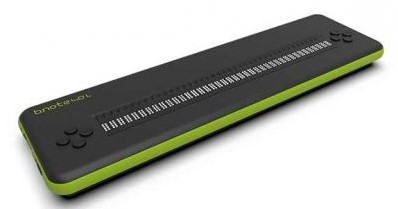

EB Braille Note b.note light 40 (no braille keyboard)
- 40 braille cells / 8 dots per cell
- 40 routing cursors
- 2 keypads of 4 buttons
- Processors : STM32L1 / ARM Cortex-A53, quad core, 1.4GHz
- RAM: 512MB LPDDR2 (900MHz)
- SD Card 64GB
- Wifi : 2.4GHz 802.11ac dual band
- Bluetooth : 4.2 LS BLE
- Audio out : Jack 3,5mm
- Battery : 3.7V 6000mAh (22.2 W)
- Fast charge with external power supply adaptor USB C (protocol PD Universel 2.0)
- Charge at 30% in 25 min., 80% in 1h30
- Battery life: around 14 hours
- Dimensions : 365 (40 cel.) x 105 x 27 mm
- Weight : 600 gr. (40 cel.)
- A dust cover is included
Compatibility features
- Bluetooth Connection (up to 4 devices)
- Screen readers : JAWS & NVDA
- File formats : DOCX, ODT, PDF, TXT & MBE
